• Members 855 posts
    May 4, 2025, 12:16 a.m.

    AI says the settings are dependent on the metered brightness but then gets coy about exactly how say 13 EV translates to a specific initial aperture and shutter combination that exactly matches 13 EV - before the twiddling of those starts up ...

    As we all know, a given EV translates to many, many different combinations of aperture and shutter, any of which gives the same exposure.

    We also know that EV = log2((N^2)/t) so (N^2)/t = say 2^13 = 8192 but still 8192 is a combination of N and t ** and does not specify either one.

    For the purpose of this discussion, I would prefer ISO to be invariant and set at 100.

    ** where N = the f/number and t = the shutter time

  • Members 35 posts
    May 4, 2025, 2:31 a.m.

    That, is a really interesting question in 2025 !
    Are they going by the book, are they factoring in their own lenses, who knows ?
    I must fire it up in my youngest cam (A7RIVa) to see where it has matured to.
    It would be nice to know Panic mode has evolved.
    First but, I have to derust the selector off A.

  • Members 855 posts
    May 4, 2025, 6:07 a.m.

    Looking forward to any results.

  • May 4, 2025, 9:07 a.m.

    Each camera manufacturer will have their own algorithm. Fuji, for example, has some presets built in (max ISO, min shutter speed etc.) which can be set by the user. Within those parameters, it will choose a shutter speed dependant on focal distance (based on 1/focal length * 1.5) and aperture dependant on other stuff (I don't know what) and, if necessary, raise the ISO.

    Alan

  • Members 2128 posts
    May 4, 2025, 9:14 a.m.

    All the data you need is or should be in the instruction manual that comes with your camera.

  • Members 855 posts
    May 4, 2025, 12:53 p.m.

    AI queries do not generally waste my time.

  • Members 855 posts
    May 4, 2025, 12:54 p.m.

    Not helpful because all the data I need is not in my manual.

  • Members 855 posts
    May 4, 2025, 1:19 p.m.

    Testing my Sigma SD9/17-50mm zoom, the initial camera setting is the largest aperture f/2.8 and the metering sets the shutter time anywhere between the camera limits of 15 sec and 1/6000 sec, presumably as a function of the AE sensor illuminance for a particular scene. So if the scene exposure value is the aforesaid 13 EV, and the lens is set to f/2.8 then the shutter time would be set to 2^13 / 2.8^2 = 1/1044 sec

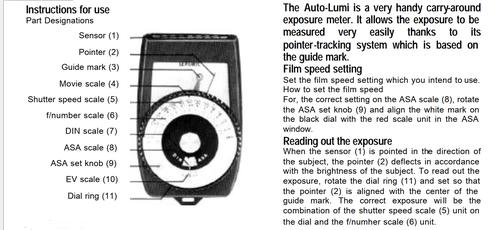

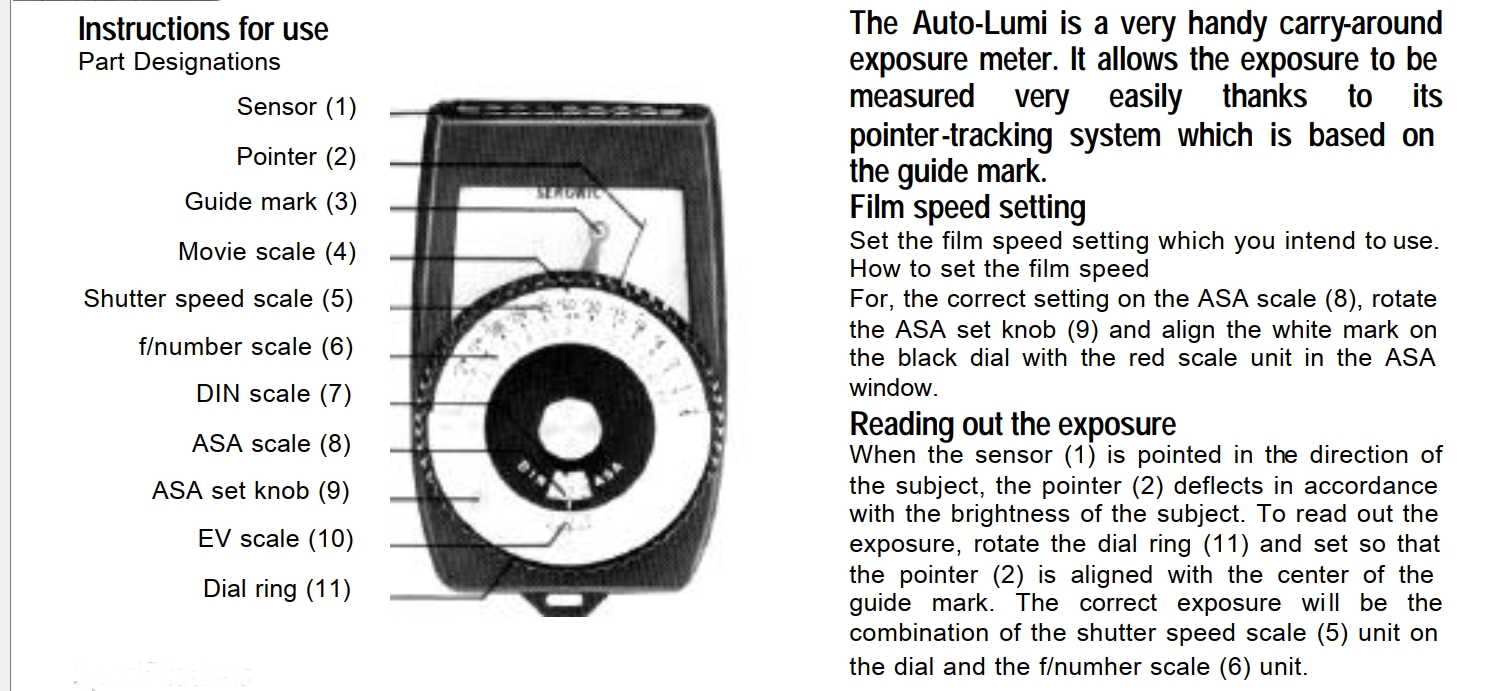

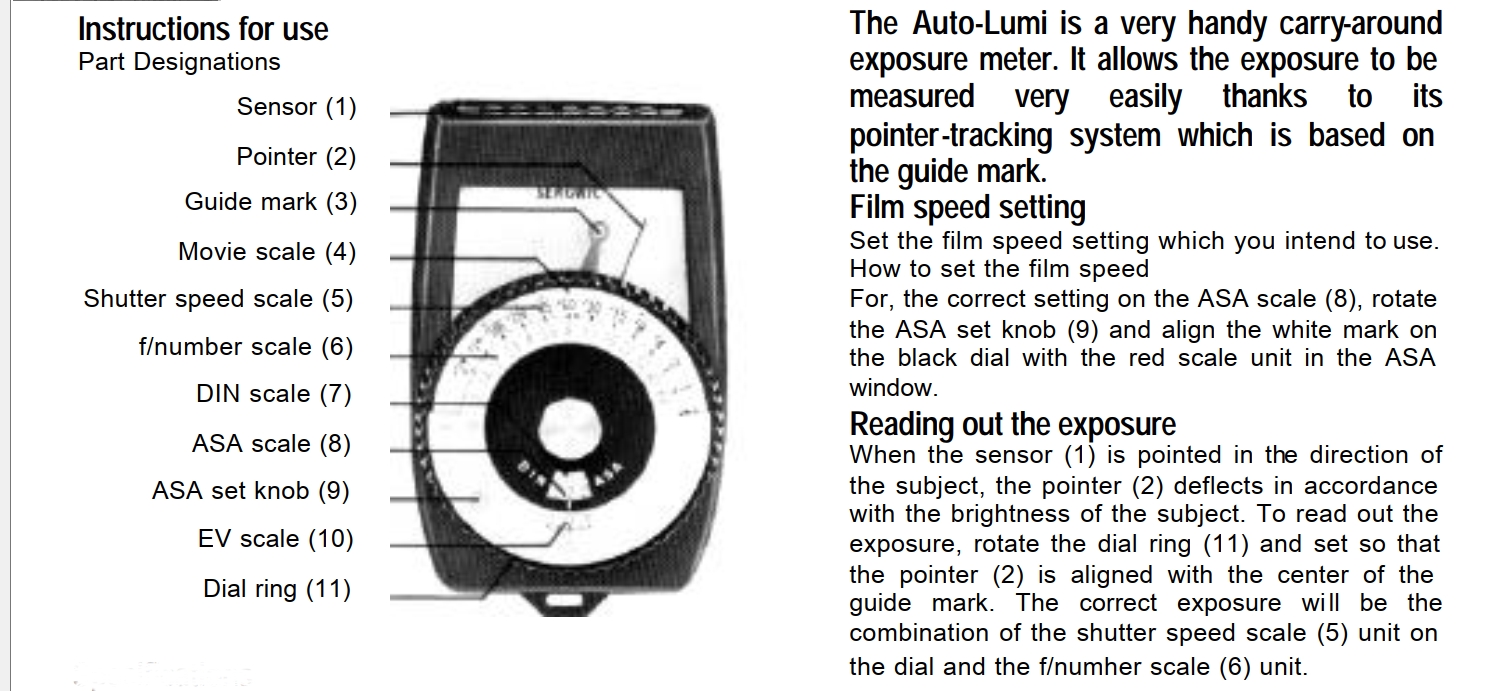

    A bit like how my separate light meters work (Sekonic, Weston batteryless).

    auto lumi.jpg

    Altering either the SD9's aperture or the shutter time adjusts the other setting appropriately to keep the EV constant.

    The SD9 is old (2003) with no ability to set other aperture/shutter limits other than those built-in and has no auto-ISO either.

    auto lumi.jpg

    JPG, 494.8 KB, uploaded by xpatUSA on May 4, 2025.

  • Members 796 posts
    May 4, 2025, 3:02 p.m.

    I am a Nikon shooter so I will speak about Nikon cameras though I am sure other brands are similar.
    There is a program in the camera which has a predetermined combination of SS/A for the EV level and based on the scene brightness it chooses the combination. By rotating rear command wheel you can overwrite this combination with another one. Thom Hogan provides in his books an initial table for each EV value.

  • Members 855 posts
    May 4, 2025, 7:35 p.m.

    Unfortunately Hogan's books cost a buck or two. I found one for the D70 free on-line but it had no such table in it. I found one for a Z but it only had the index pages. A pity because the said table would have been highly interesting ...

  • Members 796 posts
    May 4, 2025, 7:51 p.m.

    This is a table from Thom Hogans book on Nikon Z 8 camera.
    Program Exposure Table (at ISO 100)
    EV Aperture Shutter Speed
    0 f/1.4 2 seconds
    1 f/1.4 1 second
    2 f/1.4 1/2
    3 f/1.4 1/4
    4 f/1.4 1/8
    5 f/1.7 1/12
    6 f/2 1/15
    7 f/2.4 1/23
    8 f/2.8 1/30
    9 f/3.5 1/45
    10 f/4 1/60
    11 f/4.8 1/90
    12 f/5.6 1/125
    13 f/6.7 1/180Version 2.00
    14 f/8 1/250
    15 f/9.5 1/350
    16 f/11 1/500
    17 f/13 1/750
    18
    f/16 1/1000
    19 f/16 1/2000
    20
    f/16 1/4000 * maximum value; for brighter scenes camera uses 16.3 value

  • Members 855 posts
    May 4, 2025, 8:21 p.m.

    ...
    P.S. I asked AI about Thom Hogan's testing and got:

    Seems reasonable as they match typical exposure values for such scenes. AI quoted a similar table for Canon.

  • Members 855 posts
    May 4, 2025, 8:27 p.m.

    Cool !!
    We were typing at the same time ...

  • Members 855 posts
    May 6, 2025, 5:54 a.m.

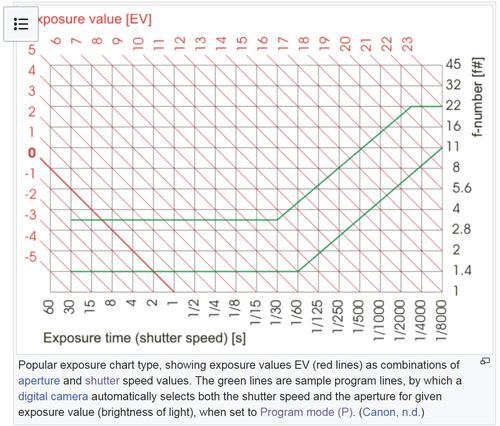

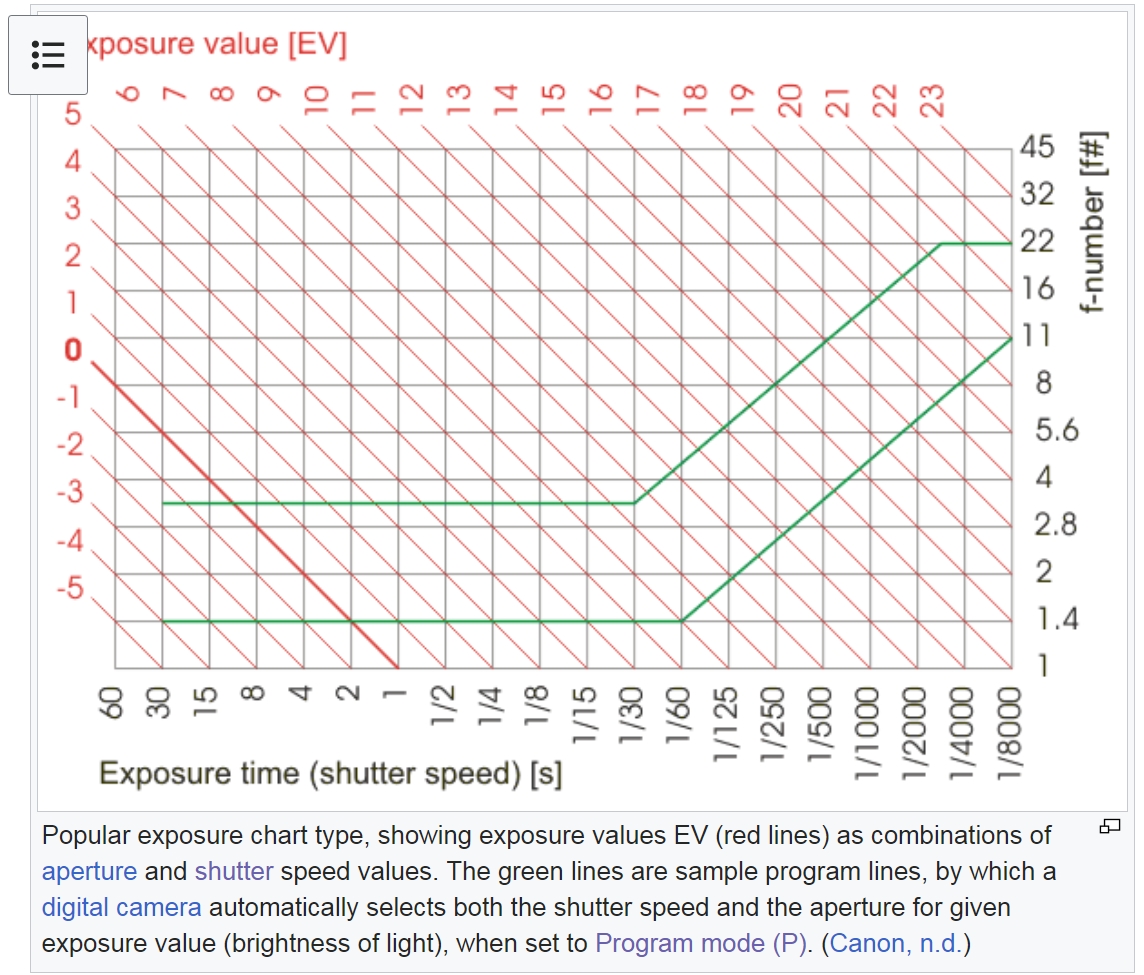

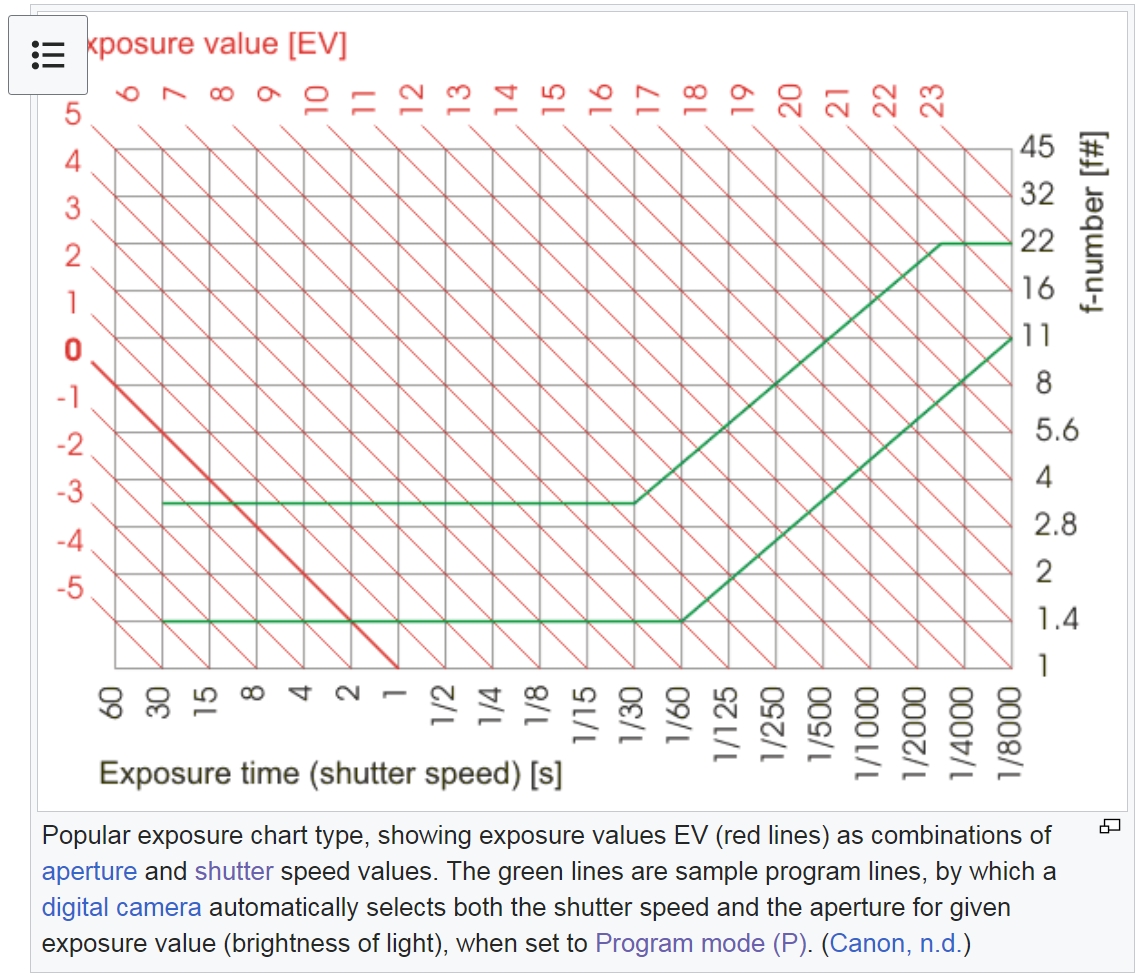

    In the Wiki on Exposure Value there is this chart which I've never really understood ...

    P-mode chart Wiki.jpg

    ... until I read "Program mode" in the text! I still don't quite get it but at least it offers a clue as to where the default numbers might come from!

    Maybe the green lines represent two different lenses, in which case my prior 13 EV would default in P-mode to about f/4 1/1000 with the expensive lens ??

    Hogan's numbers match the upper green line very well !!

    It does introduce lens characteristics into the fray. :wink:

    P-mode chart Wiki.jpg

    JPG, 541.0 KB, uploaded by xpatUSA on May 6, 2025.

  • Members 293 posts
    May 6, 2025, 7:37 a.m.

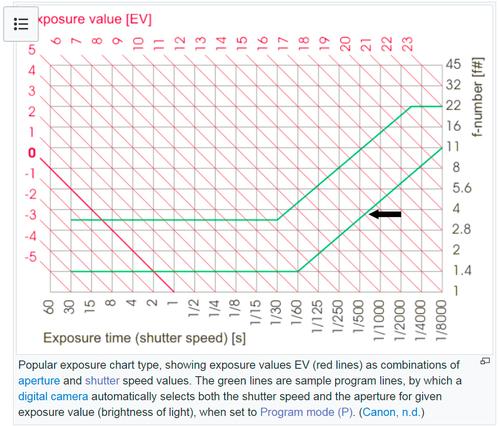

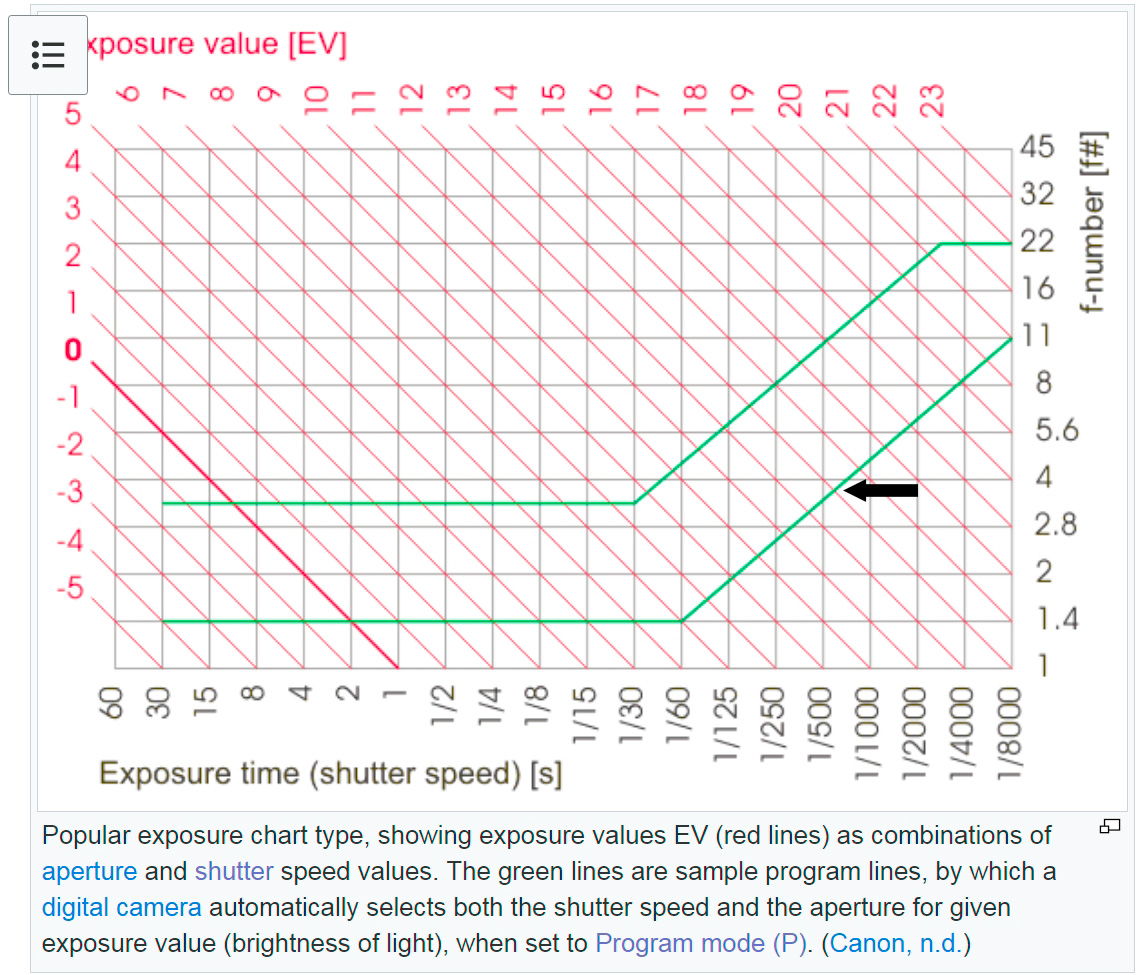

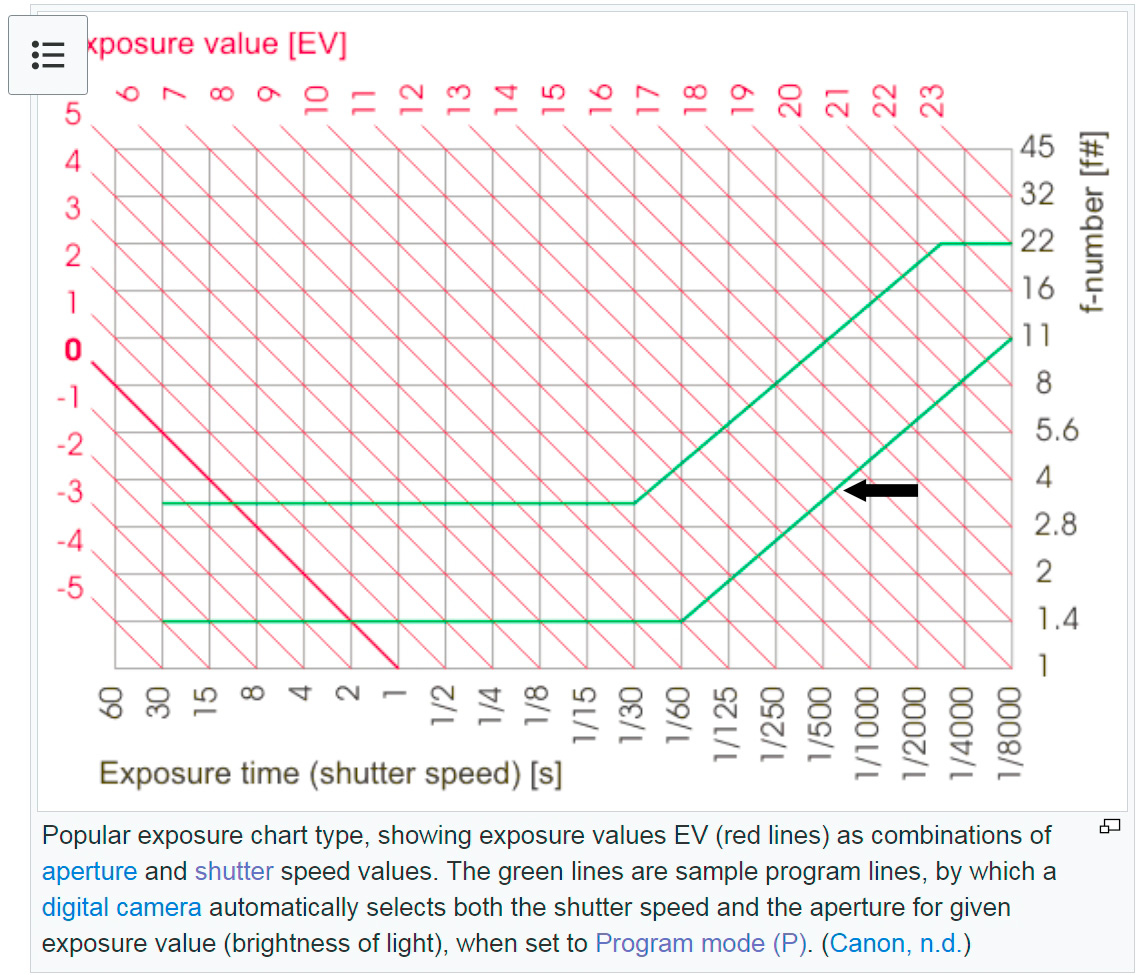

    The way I read it is that the red lines are the "possible" shutter/aperture combinations for that specific EV value at a fixed ISO, or programmed values. The two green lines are two different examples of how the "P" mode selects the aperture/shutter combinatio. What it doesn't show is ISO, also not shown is focal length so expect that to be a factor with the f3.5 lens probably being wider. So yes, a f1.4 lens would be wide open adjusting ISO until 1/60 sec and then ISO would be a constant value. The other line is a f3.5 lens which varies ISO until 1/30 sec then holds it constant until f22 where presumably it hits the smallest aperture and defaults to changing ISO again. I read the selection of aperture/shutter at EV 13 for the faster lens to be here:



    JPG, 371.5 KB, uploaded by Andrew546 on May 6, 2025.

  • Members 855 posts
    May 6, 2025, 2:12 p.m.

    Thanks. Good point about ISO for modern cameras.

    P.S. Looks too like maybe the same camera is also illustrated by the green lines since there is the same maximum shutter time applicable to both lenses. For example, my Sigma SD9 camera can not go longer than 15 sec at 100 ISO, so that's where the horizontal green lines would stop at the left of this chart.
