• Members 876 posts
    Nov. 21, 2023, 11:43 p.m.

    Sorry, all wrong. BTW, computer projectors almost always rely on keystone corrections, sometimes quite strong; and they are done perfectly.

  • Members 876 posts
    Nov. 21, 2023, 11:59 p.m.

    I almost bought the Canon 24 TSE years ago after using a rented one for a while. I loved it but then I decided that I do not need one more lens; and even if I had it, I would not take it with me often. Also, unrelated to the TSE discussion, the night shots had some unpleasent "sun stars" due to the number and the shape of the blades. The option of a tilted plane of focus was nice to have but RPITA in the field to set up.

  • Members 941 posts
    Nov. 22, 2023, 6:39 a.m.

    I agree that you need a lot of time and patience to set up a scene with a shift lens on a tripod, but I also enjoy the process of getting what I want in the viewfinder.

    But with mirrorless, things are a bit different, almost game changing in my opinion. When I cannot use a tripod I use the in camera level to compose with my shift lenses. I can enlarge in the viewfinder to get critical focus and exposure is easy to control with the WSWG viewfinder. With IBIS I can close down a bit and the Z7 is still quite noise free at 1600


    This was hand held. It just needed some very minor adjustment in post.


    JPG, 1.1 MB, uploaded by NCV on Nov. 22, 2023.

  • Members 941 posts
    Nov. 22, 2023, 7:53 a.m.

    Update.

    I must have done my original combinations using Capture 1 keystone tools. Using DXO Viewpoint Ver 1 I can get a good match with 2 direction keystone correction.

    DSC_0640 1-overlay 11-22.jpg

    Looks like not all keystone correction tools are equal. Viewpoint seems to do a very good job.

    DSC_0640 1-overlay 11-22.jpg

    JPG, 128.3 KB, uploaded by NCV on Nov. 22, 2023.

  • Members 941 posts
    Nov. 22, 2023, 8:07 a.m.

    This conversation has prompted me to take another look at keystone correction in post.

    I made 2 quick conversions using the same files. The pictures were taken with the same 24TS form the same position

    DXO Viewpoint does a good job

    DSC_0640 1-overlay 11-22.jpg

    Capture One is quite disastrous

    DSC_0640 1-overlay (2).jpg

    I do not quite know what is going on here, and I might do some more experiments.

    DSC_0640 1-overlay (2).jpg

    JPG, 153.4 KB, uploaded by NCV on Nov. 22, 2023.

    DSC_0640 1-overlay 11-22.jpg

    JPG, 128.3 KB, uploaded by NCV on Nov. 22, 2023.

  • Members 289 posts
    Nov. 22, 2023, 2:35 p.m.

    However, that's what professional profilers do.

  • Members 1192 posts
    Nov. 22, 2023, 9:54 p.m.

    The initial question of this thread was: Does the online photography world worry far to much about lens quality? It seems a bit of an obsession at times.

    It soon veered to an interesting discussion of the ways of correcting perspective distortion in architectural photos.

    But to go back to the first question, without necessarily answering it...

    I have often been struck by the quality of photos occasionally uploaded here and made by the equipment of two manufacturers: Fujifilm and Leica. The first case is usually associated with medium format with 100MP sensors, so I discount those. But the Leica cameras are full frame. I am struck by the excellence of images made by the Leica Q series. Even when these are not uploaded at max resolution, their clarity is outstanding. I have come to the conclusion that this is due to them being fixed lens cameras, with the lens and sensors being well and holistically matched. I have also read of Nikon and other lenses being adapted to use on Leica interchangable lens cameras and producing better results than on the cameras they were intended for. Something is going on there and I dont know quite what it is, but it makes an otherwise artistically satisfying photo into one that is also technically stunning.

    I dont "worry" about this exceptionally high quality; but I certainly appreciate it.

    David

  • Members 941 posts
    Nov. 22, 2023, 10:22 p.m.

    Maybe my title did not have surgical precision. Lens quality today, seems to be tied up with MFT resolving power, test charts and blurred corners. I forgot Bokeh of course. This is what my post was all about. Nobody, talks much about contrast, micro contrast and other factors which make up the lens image quality package. The Samyang 24TS which I owned briefly was slated for various distortion issues in the reviews I read, but none talked about the horrible low contrast this lens had.

    Your observations regarding Leica and Fuji images, may be due to some sensor micro lens magic, or software processing. Who knows.

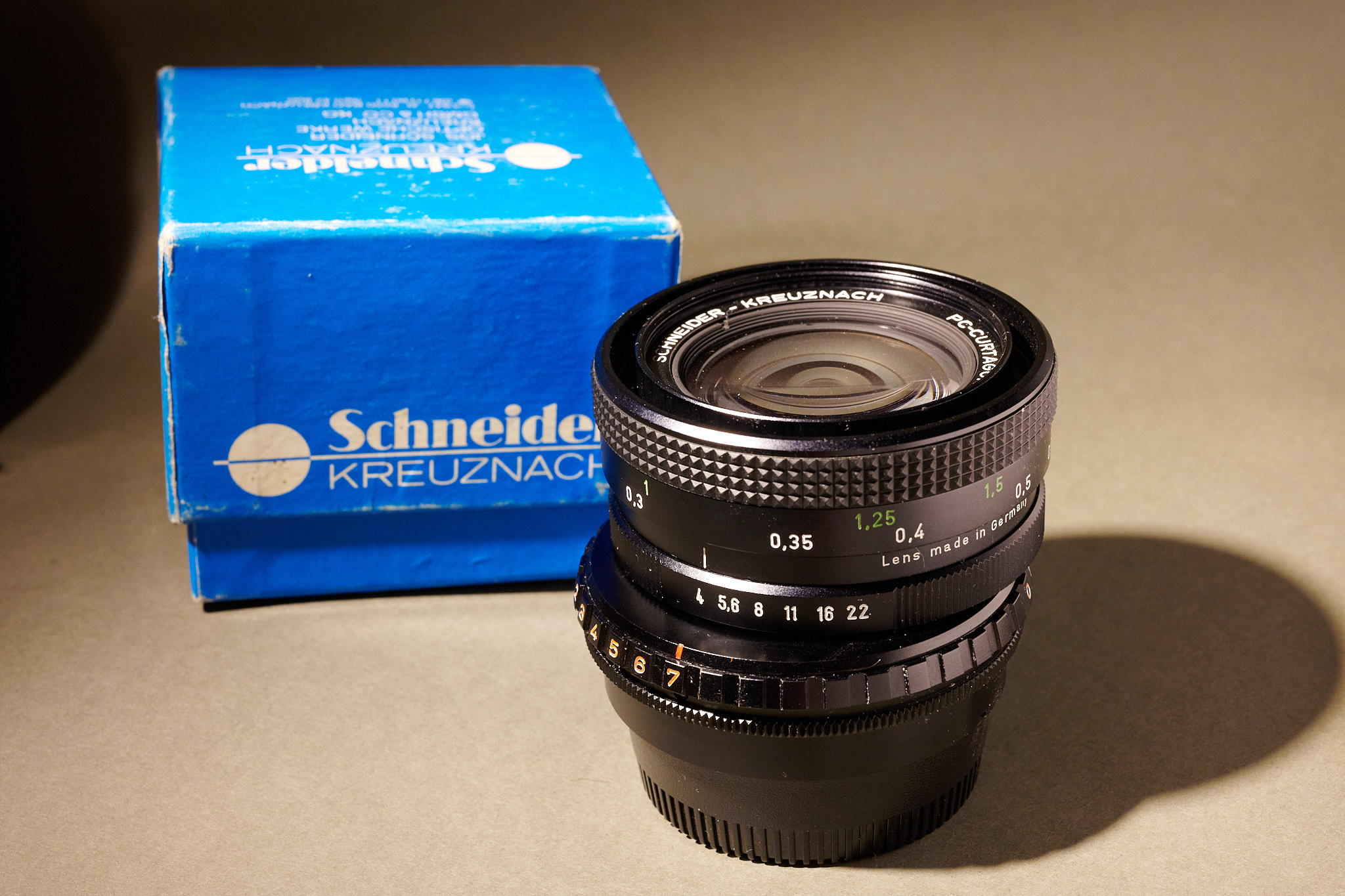

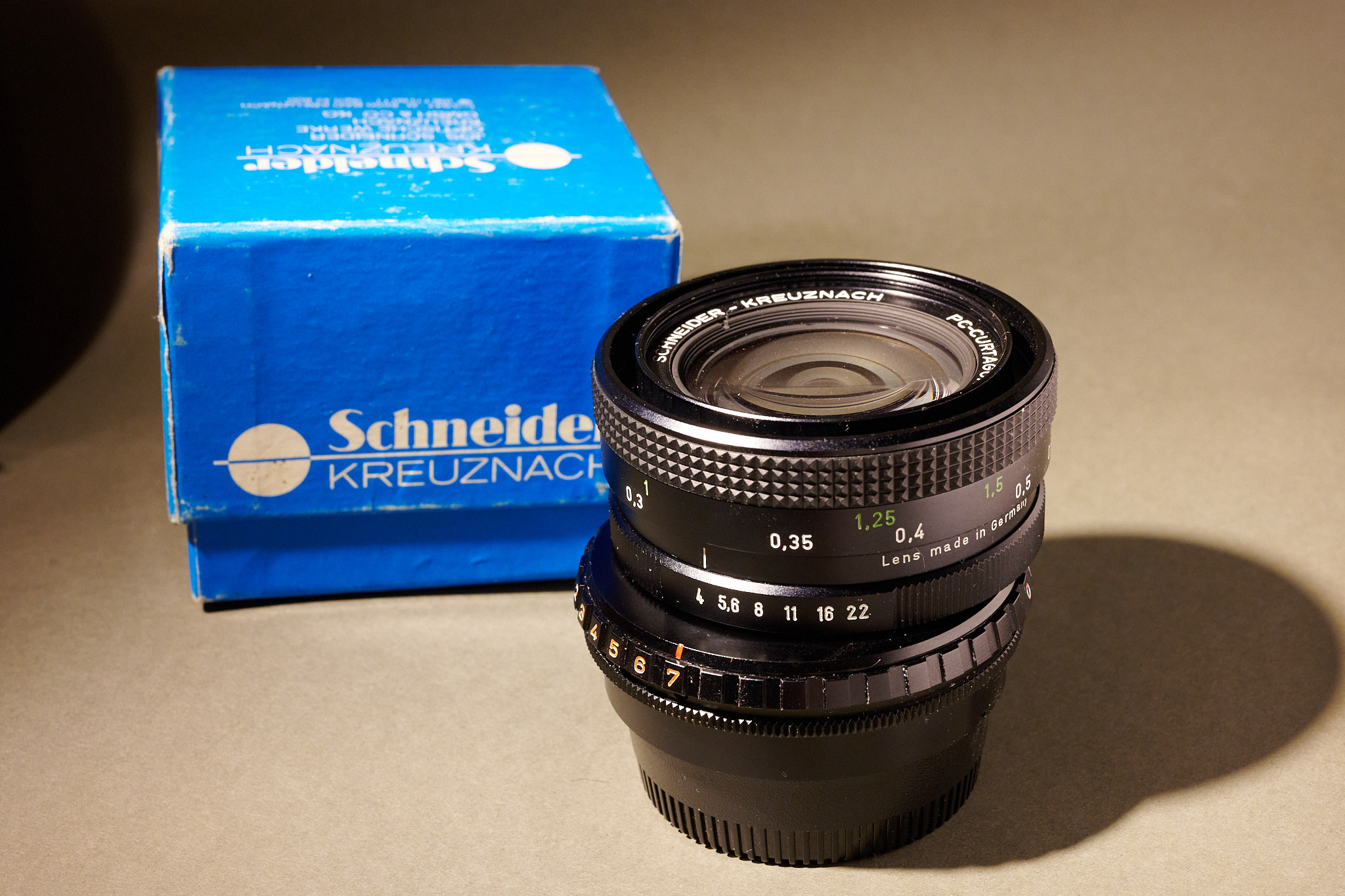

    I bought a Schneider Kreuznach PC Curtagon 4.0 35mm shift lens, old new stock for €240, out of curiosity. It has a very original shift mechanism. The few tests I found were not encouraging. But I like the rendering this lens gives me. Like the two Nikon PC lenses, it seems a bit more "creamy" than my sharper modern lenses.



    I might dig out my old Nikon 180 2.8 to see if it has anything to offer, when I photograph architectural details.

    The diversion of this thread turned out to be interesting. It seems diagonal shift, can be reproduced in post if you use the right software. Which begs the question about what transformations are being done when we use the key stone correctors in our software.


    JPG, 1.1 MB, uploaded by NCV on Nov. 22, 2023.


    JPG, 556.6 KB, uploaded by NCV on Nov. 22, 2023.

  • Members 876 posts
    Nov. 22, 2023, 10:57 p.m.

    I never got the Leica magic; if anything, the Leica images I see have extreme contrast. Fuji MF is a different story - I see rich colors. I cannot explain that with the larger format - it is just "slightly" larger than FF.

    BTW, the images here look very soft before I click on them. I hope the team can do something about that.

  • Members 289 posts
    Nov. 24, 2023, 4:10 p.m.

    Lens shift tilt on projectors is not the same as "keystone" correction which is the same concept behind keystone correction in imaging S/W.

    www.lifewire.com/tip-lens-shift-vs-keystone-correction-1847335

    Keystone correction is a projective transform known as a homography and such corrections belongs to the prevue of geometry over projective space - in the case of images over the two dimensional projective space over the real numbers.

    en.wikipedia.org/wiki/Homography

    Projective geometry does not preserve distance and the concept of angles does not exist. That is the distance between two points one on the focal plane and another on a different plane will not be preserved in a keystone correction algorithm. Since there is no concept of parallel lines in the projective plane (all lines intersect in projective geometry) keystone correction off the focal plane cannot accurately address points that come from reflectors on planes other than the focal plane. In fact if S/W keystone correction could accurately remove all perspective distortion for the image of the from using S/W. That would be equivalent to being able to recreate the Euclidian geometry (which preserves both distance and angles) from a single image. It is pretty well know you need two - each taken at different points of reference - a.k.a. stereo imaging to accomplish.

    en.wikipedia.org/wiki/Projective_geometry

    Projective space rather than affine space is the appropriate way to describe images which is why it is the foundation of computer vision.

    www.hhi.fraunhofer.de/fileadmin/Departments/VIT/IMC/Team/schreer/doc_pub/1998_Lecture_ProjGeometryIntro_Birchfield.pdf

  • Members 876 posts
    Nov. 24, 2023, 4:32 p.m.

    [deleted]

  • Members 1192 posts
    Nov. 24, 2023, 7:25 p.m.

    This is fascinating to me.

    I am trying but do not understand why I am unable to get my mind around these concepts.... I will keep trying.

    In practical terms, I wonder whether the fact that a shifted lens is looking at an angle, and therefore through a thicker cross-section of glass, has any influence on the accuracy of the result.

    But dont let me derail the conversation!

    David

  • Members 941 posts
    Nov. 24, 2023, 10:09 p.m.

    When you use a shift lens, you are basically cropping in camera. A 24PC is actually a 21mm I believe. You are using just a part of the image circle. There will be some "stretching" effects due to the rectilinear wide angle conformation. The glass will have no effect

    Tilting the lens upwards and correcting in post will have keystoning, but vertically the detail of how you see such things as window sills remains the same as a line drawn from the sensor to the detail remains at almost the same angle compared to the horizontal. We just need horizontal stretching in post. It is all a question of trigonometry.

    You can sketch things out with a pencil and paper.

  • Members 300 posts
    Nov. 25, 2023, 12:09 p.m.

    I agree, this true.

    This is not true. A 24mm lens is a 24mm lens.

    A 24PC or TS lens has bigger angle of view and so bigger image circle, but not shorter focal length. All that speech of crop factors and equivalent focal lengths is confusing people.The 24mm TS-E has ~103° AOV at 48x36mm sensor which is equivalent with 17mm lens at 24x36mm sensor. It's focal length is still 24mm.

  • Members 162 posts
    Nov. 25, 2023, 1:54 p.m.

    JACS' suggestion does not involve geometric corrections in software. Use a lens wide enough to cover the top of the edifice, held parallel to it, and simply crop out the bottom and sides. That's what we did before Nikon introduced the world's first shift lens and we didn't have a view camera.
    Edit: I haven't read beyond tprevatt's post, so if this is redundant, please disregard.

  • Members 941 posts
    Nov. 25, 2023, 2:48 p.m.

    True, I should of written equivalent to a 21mm lens.

  • Members 300 posts
    Nov. 25, 2023, 2:51 p.m.

    I think he did answer to his own question when asking:

    When using PC or TS lenses we are using UWAs and cropping a part of image to use. The same with view cameras. We used to use wide angles with view cameras to keep vertical lines parallel. No need to correct in PS/LR. AOV of my widest view camera lens is 110°.

  • Members 300 posts
    Nov. 25, 2023, 3:03 p.m.

    Or shorter...😎
